DCP-180 diaphragm pump - PP, PTFE, FFKM
up to 180 ml/min - wetted materials PP, PTFE, FFKM
Description
The self-priming diaphragm pumps of the DCP-180 series with flow rates of up to 180 ml/min, at operating pressure ranges from -300 to 1000 mbar.
The high-quality brushless motor ensures a long lifetime.
Specifications
Type
|
DCP-180P-N1TG
|
Flow rate (max.)
|
180 ml/min
|
Pressure (max.)
|
1000 mbar
|
Vacuum (max.)
|
-300 mbar
|
Voltage
|
12VDC | 24VDC
|
Media temperature
|
5 - 40°C
|
Ambient temperature
|
5 - 40°C
|
Power consumption
|
3.6 W
|
Connection
|
Hose Barbs
|
Wetted materials
|
PP, PTFE, FFKM
|
Dimensions
|
24.4 x 42.7 x 51 mm
|
Weight
|
approx. 80 g
|
Flow rate DCP-180 diaphragm pump

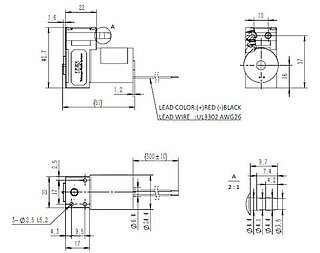

Dimensions
Downloads
DCP-180 datasheet 283 KB
