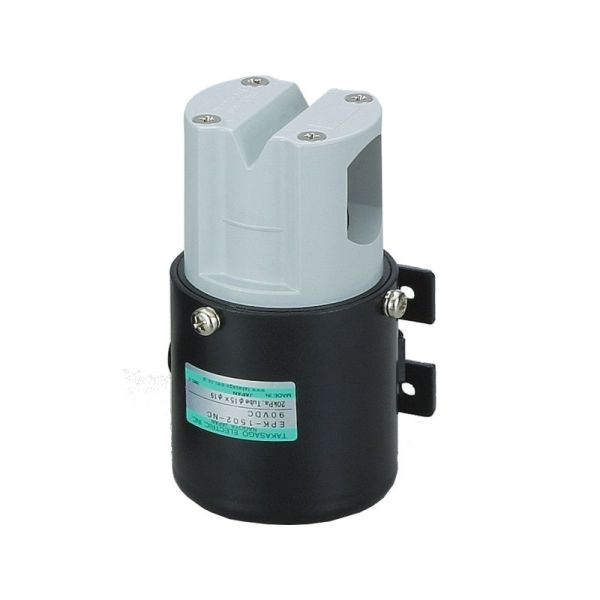

EPK Series - Pinch valve
Tube size: 10.0-15.0 x 13.0-15.0mm (ID x OD)
Description
2/2-way pinch valve.
This valve is also available in bistable version (EL Series). This reduces both power consumption and heat generation to a minimum.
Specifications
Type
|
2/2-way normally closed 2/2-way normally open |
Tube inner diameter (ID)
|
10.0 - 15.0 mm
|
Tube outer diameter (OD)
|
13.0 - 19.0 mm
|
Tube material
|
Silicone Please ask for further tube sizes and types, we will be pleased to adapt our valves to your tubes! |
Rated voltage
|
12 VDC | 24 VDC other voltages on request |
Operating pressure range
|
0 - 500 mbar
|
Ambient temperature range
|
-10 - 40°C
|
Power consumption
|
60 W
|
Operating duration
|
100% ED (sometimes 10% ED)
|
Mounting direction
|
Any
|
Dimensions
|
Ø64.0 x 112.0 - 132.0 mm
|
The pinch valves can be customized to your tubes to achieve optimum closing force.
Customizable to specific requirements (e.g. higher pressure range, different operating mode, higher temperature range, different operating voltage, ...)
Downloads
EPK Series datasheet 274 KB
