Inline miniature solenoid valve - 10mm

10mm outer dimension

Description

2/2-way normally closed with plastic or stainless steel body.

High pressure range up to 10bar.

Fast response time.

Very high flow rate: 90 l/min air at 8 bar

Small dimensions: Diameter 10 mm x 42.5 mm

The inline flow direction makes it ideally suited for devices with limited spaces.

The inline valves are free of dead space and offer optimum flushability due to their design.

Type	2/2-way normally closed

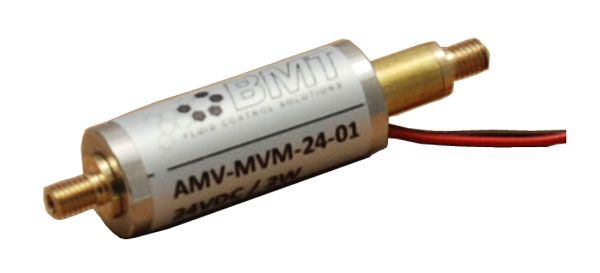

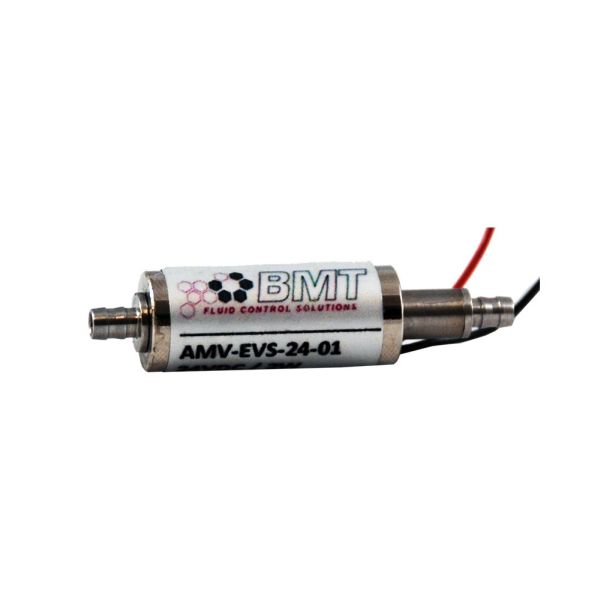

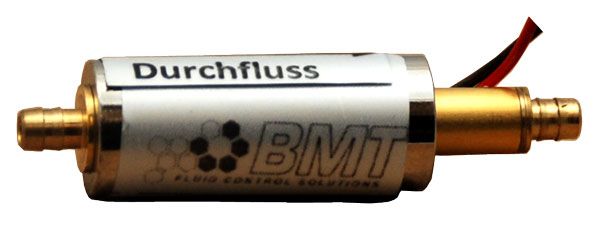

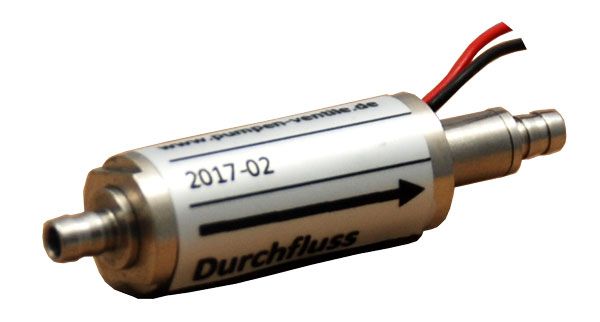

Port Connections	Hose barbs \| M3 External thread \| O-ring
Rated Voltage	24 VDC
Operating Pressure range	0 - 10 bar (for air)
Flow rate (at 10 bar with air)	100 l/min
Gasket	NBR \| FKM

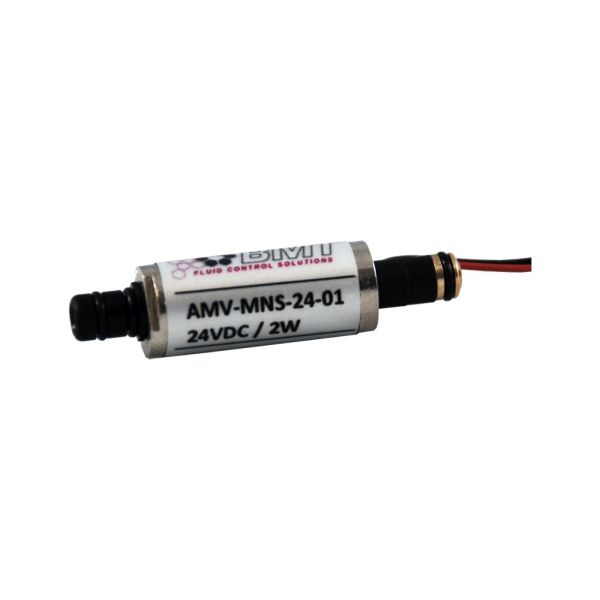

Materials	Reinforced polyamide with brass inserts \| Stainless steel
Power consumption	2 W \| 2.2 W
Operating duration	100% ED
Mounting direction	Any
Dimensions	Ø10.0 x 42.5 - 43.0 mm (depending on the model)
