MLP series dosing pump

Dosing range: 10 - 200μl

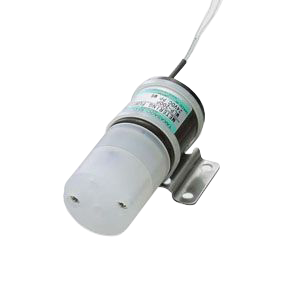

MLP-200P

Description

The dosing range of these magnetic stroke pumps can be adjusted between 10 - 200μl using a set screw. Due to a wide selection of welled materials, the dosage of aggressive liquids is possible.



Specifications

Dosing
10-200μl
Repeatability
± 1%
Frequency
2hz
Connection
M6 | 1 / 4-28UNF
Wetted materials
PTFE and FPM | POM and FPM | PP and FPM
Operating voltage
12VDC | 24VDC
Power consumption
5,9W
Fluid temperature range
10 - 40 °C
Ambient temperature range
10 - 40 °C
