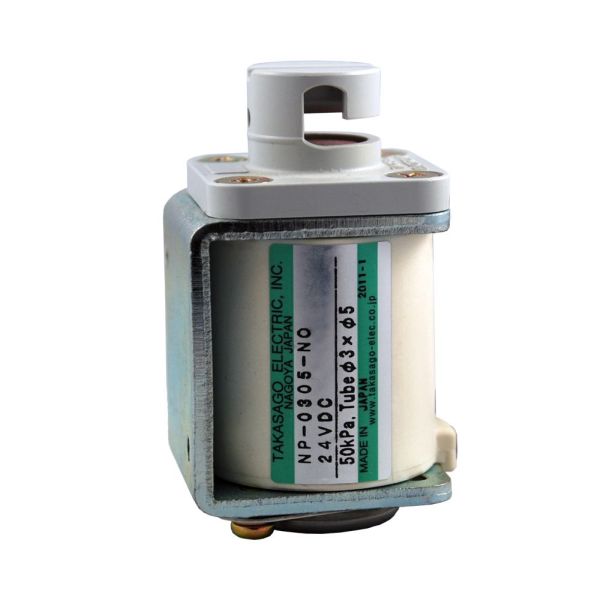

NP Serie - Pinch Valve
Tube size: 1.6-6.4 x 4.0-9.6mm (ID x OD)
Description
2/2-way pinch valve.
Specifications
Type
|
2/2-way normally closed 2/2-way normally open |
Tube inner diameter (ID)
|
1.6 - 6.4 mm
|
Tube outer diameter (OD)
|
4.0 - 9.6 mm
|
Tube material
|
Silicone | Pharmed® Please ask for further tube sizes and types, we will be pleased to adapt our valves to your tube! |
Rated voltage
|
12 VDC | 24 VDC other voltages on request |
Operating pressure range
|
0 - 500 mbar
|
Ambient temperature range
|
0 - 40°C
|
Power consumption
|
10 W
|
Operating duration
|
100% ED
|
Mounting direction
|
Any
|
Dimensions
|
36.0 x 40.0 x 64.5 - 87.5 mm
|
The pinch valves can be customized to your tubes to achieve optimum closing force.
Customizable to specific requirements (e.g. higher pressure range, different operating mode, higher temperature range, different operating voltage, ...)
Downloads
NP Series datasheet 274 KB
