NV Series - Ultra miniature diaphragm isolation solenoid valve
Orifice diameter 0.4mm
Description

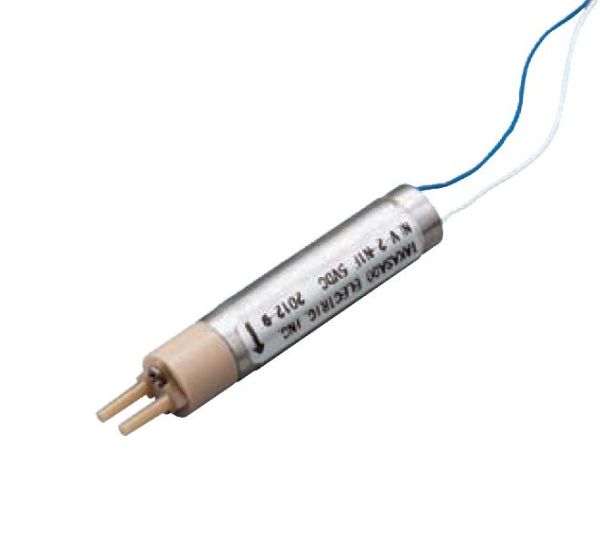

2/2-way ultra miniature diaphragm isolation solenoid valves with fluid separation.

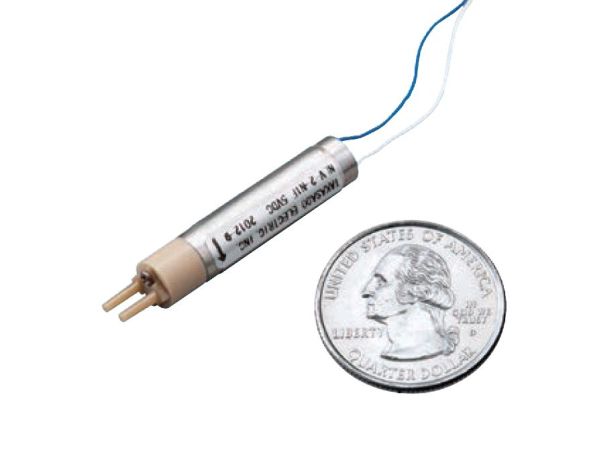

With an orifice diamater of 0.4mm and external dimensions of only Ø5.7 x 32.5mm (height varies depending on fluidic connection), this valve is ideal for microfluidic applications with the highest demands.
This inert valve is also available in latching version (NLV series). This reduces both power consumption and heat generation to a minimum.
Specifications
Type
|
2/2-way normally closed
|
Orifice diameter
|
0.4 mm
|
Port Connection
|
hose barbs | flange
|
Rated voltage
|
5 VDC | 12 VDC | 24 VDC other voltages on request |
Working pressure input:
|
0 - 1000 mbar outlet: 0 - 500 mbar |
Diaphragm material
|
Perfluoroelastomer (FFKM) | FPM
|
Body material
|
PEEK | PPS
|
Seal material
|
Perfluoroelastomer (FFKM) | FPM
|
Fluid temperature range
|
10 - 50°C
|
Ambient temperature range
|
10 - 50°C
|
Power consumption
|
1W
|
Mounting direction
|
Any
|
Fluid
|
Resistant to neutral and aggressive liquids / gases (see resistance lists) |
Dimensions
|
For hose nozzles: Ø 5.7 x 32.5mm (depending on model, height varies depending on fluidic connection) |
Customizable to specific requirements (e.g. higher pressure range, different operating mode, higher temperature range, different operating voltage, different port connections, ...)
Downloads
NV series data sheet 294 KB
