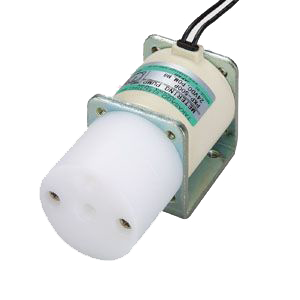

PKP series dosing pump
Dosing range: 50 - 500μl
Description
The dosing range of these magnetic stroke pumps can be adjusted between 50 - 500μl using a set screw. Due to a wide selection of welled materials, the dosage of aggressive liquids is possible.
Specifications
Dosing
|
50 - 500μl
|
Repeatability
|
± 1
|
Frequency
|
2hz
|
Connection
|
M6 | 1 / 4-28UNF
|
Wetted materials
|
POM and FPM | POM and silicone | PP and FPM | PP and silicone | PP and EPDM
|
Operating voltage
|
12VDC | 24VDC
|
Power consumption
|
10W
|
Fluid temperature range
|
10 - 40 °C
|
Ambient temperature range
|
10 - 40 ° C
|
Dimensions
|
36.0 x 43.0 x 78.0 mm
|
Downloads
Micro dosing pumps datasheet 254 KB
