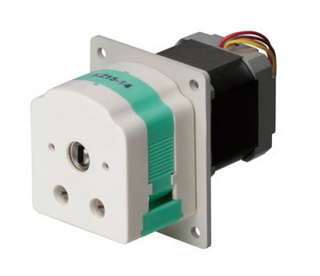

Precision peristaltic pump T100-KZ10-24 - with up to 2 channels
High precision, due to stepper motor control 0.1rpm to 100rpm
Description
Available in versions with control mode:
- Dial switch and external signal (4-20 mA)
- Dial switch and external signal (0-5 V)
- Dial switch and external signal (0-10 V)
- Dial switch and external signal (0-10 kHz)
- RS485 communication
Up to 42ml/min with 3.2mm ID-tubing.
Pump head with one or 2 channels made of POM or PVDF.
Suitable tubings:
- 1 channel: ≤ 3.2 mm x 1,6 mm (ID x WT)
- 2 channels: ≤ 3.17 mm x 0.86 mm (ID x WT)
Specifications
Speed
|
≤ 100rpm
|
Speed resolution
|
0.1rpm
|
Max. flow rate
|
42mL/min
|
Tubing
|
max. 3.2mm x 1.6mm (I.D. x W.T.)
|
*Direction control
|
Direction is controlled by external switch signal. CW when switch is open, CCW when switch is closed.
|
*Start/stop control
|
Start/stop is controlled by external switch signal. Pump runs when switch is open, stops when switch is closed.
|
*BCD dial switch speed control
|
The speed is divided into 15 grades. BCD position 1-F corresponding to (rpm) 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100 (rpm)
|
*External speed control (optional)
|
4-20mA corresponding to 0.1-100rpm, 0-5V corresponding to 0-100rpm, 0-10V corresponding to 0-100rpm, 0-10kHz corresponding to 0-100rpm
|
**Communication pump ID
|
Pump ID range is 1-30
|
**Bit rate
|
1200bps or 9600bps
|
Dimension (L x W x H)
|
90 x 60 x 80 (mm)
|
Relative humidity
|
< 80%
|
Operating temperature
|
0°C - 40°C
|
Power supply
|
DC 11.4V - 25.2V
|
Power consumption
|
≤ 12W
|
Note
|
Items with * are only available for products with dial switch and external speed control signal. Items with ** are only available for product with RS485. |
Dimensions T100-KZ10-24 with controller
Dimensions T100-KZ10-24 without controller
