RP-WII Series - Ring Pump peristaltic pump - robust design
Flow rates up to 500ml/min, 24VDC motor
Description
Peristaltic pump based on the Ring Pump principle for pumping various fluids depending on the tubes material in different flow rate ranges.
Significant extension of service intervals due to gentle pump system and durable hose. (see Ring-Pump System)
Robust design with fixed PharMed® tube.
Specifications
Motor
|
DC gear motor
|
Flow rate
|
350ml | 500ml
|
Channels
|
1
|
Operating pressure (max.)
|
500mbar
|
Tube materials
|
PharMed®
|
Tube sizes (I.D. x O.D.)
|
4.0 x 8.0mm
|
Operating voltage
|
24VDC
|
Dimensions
|
82.0 x 48.3 x 125.0 mm
|
Mounting direction
|
Any
|
Product overview
Model No,
|
Voltage (DC V)
|
Discharge rate (mL/min)
|
Tube Material
|
ID x OD (mm)
|
Motor
|
|---|---|---|---|---|---|
RP-WII04F-350Z-DC24V
|
24
|
350
|
PharMed BPT
|
4.0 x 8.0
|
Motor A
|
RP-WII04F-500Z-DC24V
|
24
|
500
|
PharMed BPT
|
4.0 x 8.0
|
Motor A
|
RP-WII04F-700Z-DC24V
|
24
|
500
|
PharMed BPT
|
4,0 x 8,0
|
Motor B
|

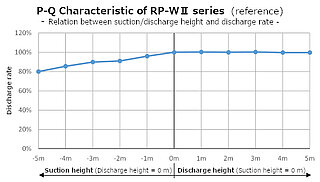

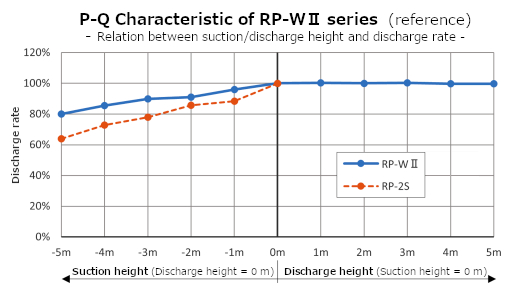

Relation between suction / discharge height and discharge rate

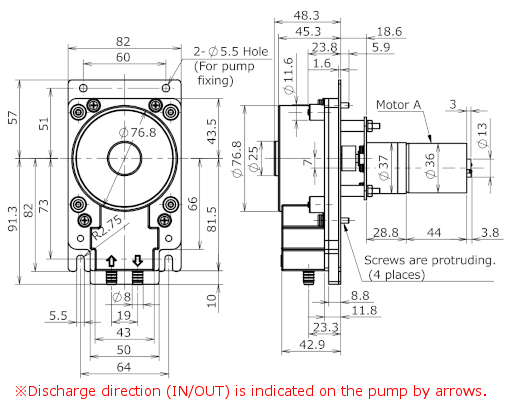

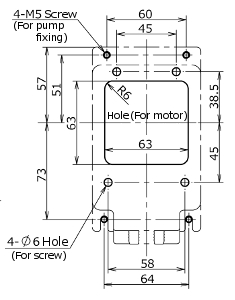

Dimensions

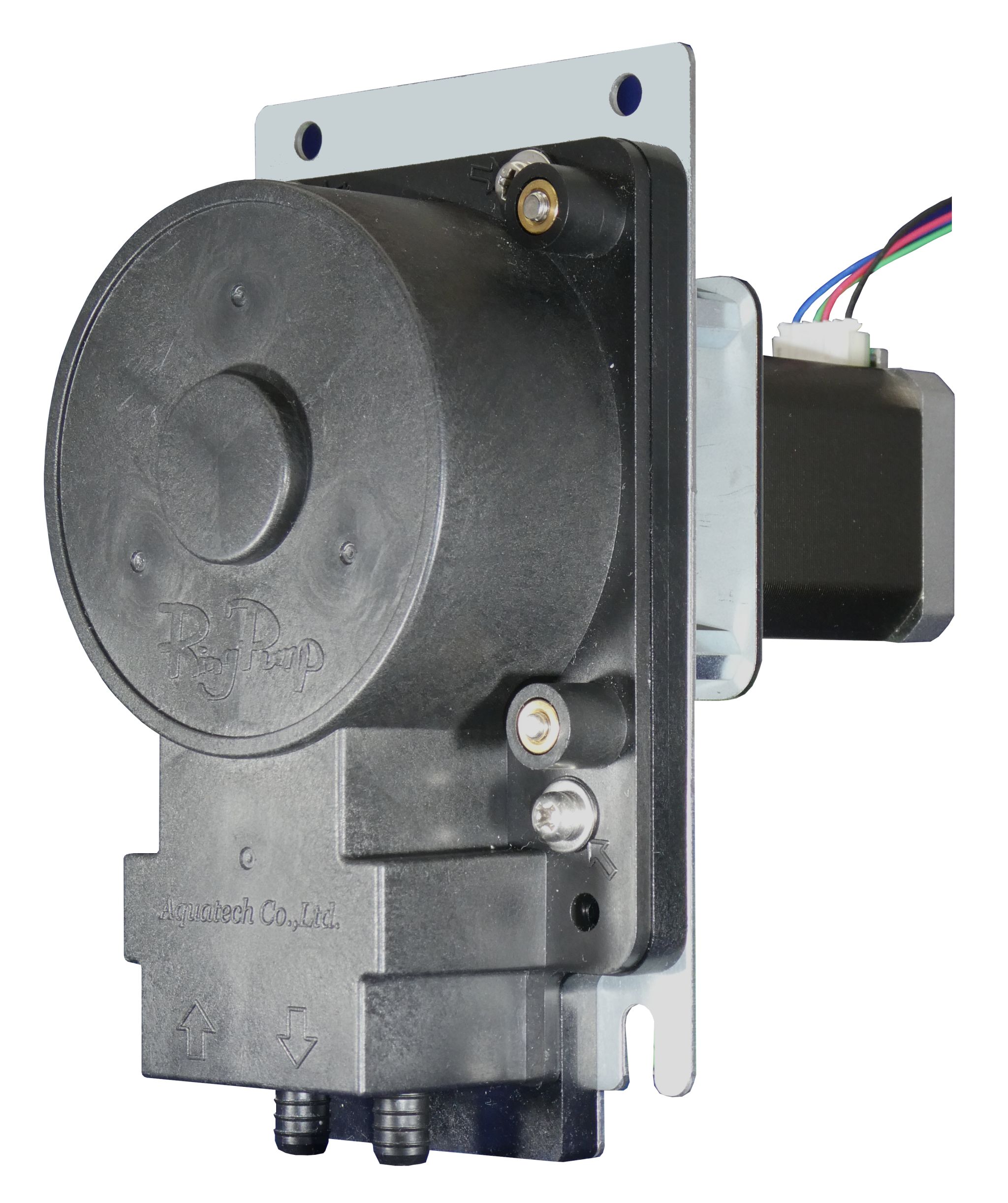

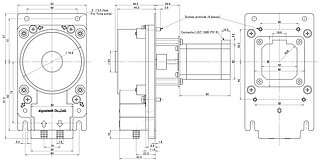

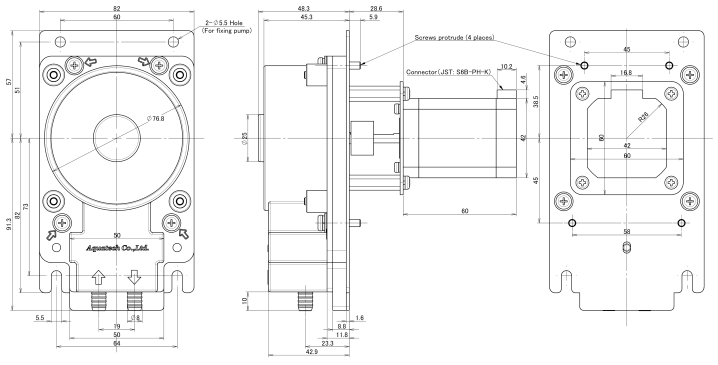

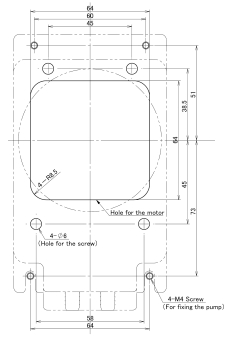

Motor Typ B
Ring Pump - peristaltic pump system
The single-ring principle of these peristaltic pumps enables, among other things, a miniature design and a very long service life of the tubes. Read more about this type of peristaltic pump and the advantages on our technical overview page.
Downloads
RP-WII datasheet 661 KB
