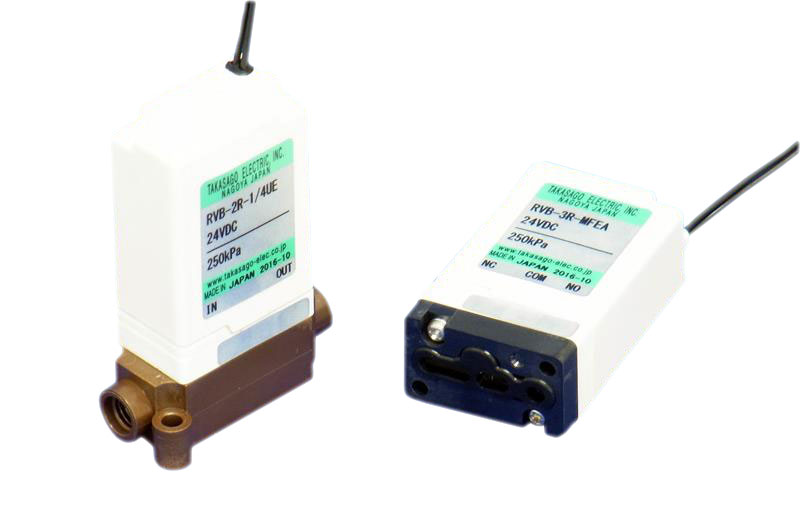

RVB Series - Rocker valve with diaphragm isolation - 16mm grid width

Orifice diameter 1.6mm

Description

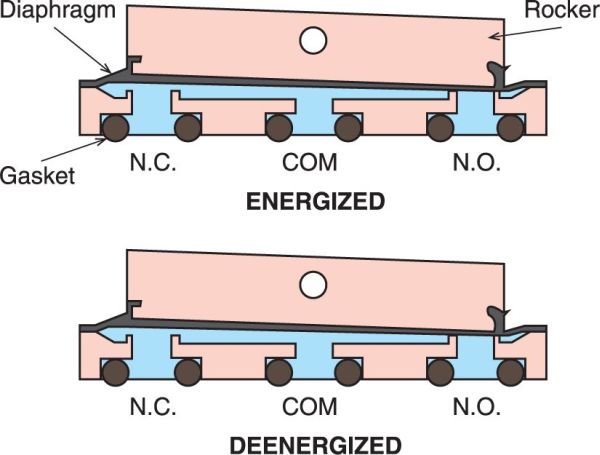

2/2-way and 3/2-way rocker type diaphragm isolation solenoid valves with fluid separation.

With 1.6 mm orifice diameter as standard, pressures of up to 2.5 bar and vacuum of up to -900 mbar are possible at all connections, which makes its use in bidirectional fluidic systems at high pressure or vacuum.

A high pressure version for pressures of up to 5 bar is available.

Special designs with optimised pumping volume enable use in demanding analysis applications.

As an option, electronics can be integrated in the valve housing to reduce the holding voltage.

The flange connections of this valve series are available in different dimensions. Contact us for more information.

Specifications

Type	2/2-way normally closed 2/2-way normally open 3/2-way
Orifice diameter	1.6 mm (0.8 mm optional)
Port Connection	Flange \| M6 \| 1/4-28UNF
Rated voltage	12 VDC \| 24 VDC other voltages on request
Operating Pressure range	input and output (NC \| NO): -900 - 2500 mbar (Optional: 5000 mbar)
Diaphragm material	Perfluoroelastomer (FFKM) \| EPDM \| FPM
Body material	PEEK \| PPS \| ETFE
Seal material	Perfluoroelastomer (FFKM) \| EPDM \| FPM
Fluid temperature range	5 - 50°C
Ambient temperature range	5 - 50°C
Power consumption	3.4W 0.85W (with electronics for holding voltage)
Operating duration	100% ED
Mounting direction	Any
Fluid	Resistant to neutral and aggressive liquids / gases (see resistance lists)
Dimensions	16.0 x 27.0 x 46.0mm

Customizable to specific requirements (e.g. higher pressure range, different operating mode, higher temperature range, different operating voltage, different port connections, ...)
