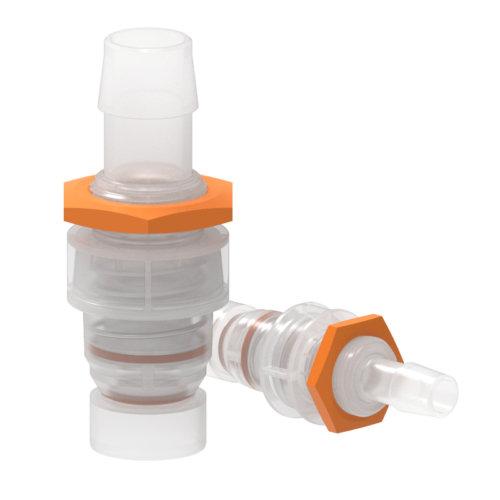

Panel Mount Sliding Latch Quick Couplings - Technical Data
Description

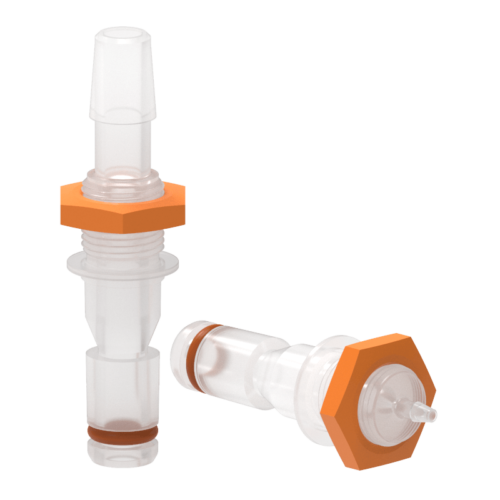

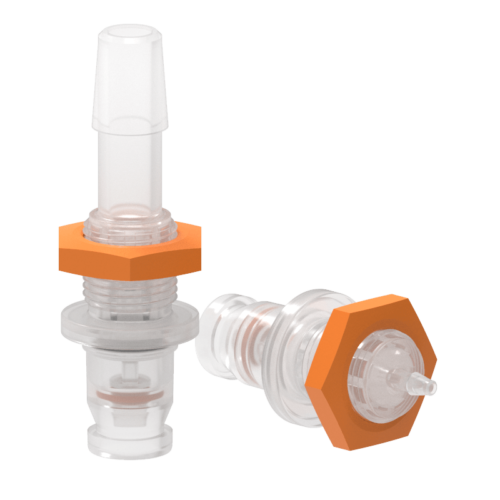

Series: Micro-O, Micro-V, Small, Medium, Large
Spring not in fluid path on Small, Medium, and Large series
Connections:
- 1/16″
- 1/8″
- 3/16″
- 1/4″
- 5/16″
- 3/8″
- 1/2″
- 5/8″
- 3/4″

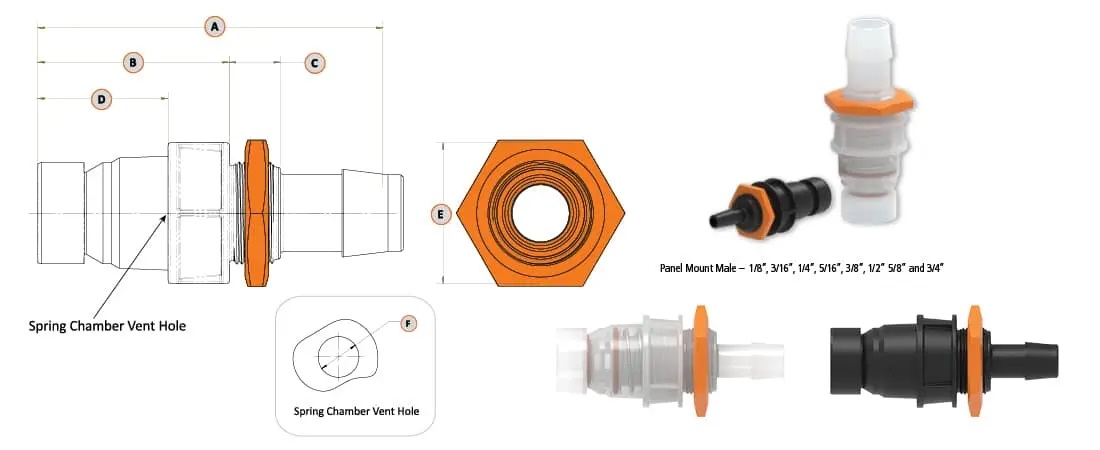

Dimensions (mm) Series Small, Medium, Large
Series
|
Connection
|
A
|
B
|
C
|
D
|
E
|
F
|
|---|---|---|---|---|---|---|---|
Small (1)
|
1/8"
|
51.82
|
28.96
|
12.7
|
24.64
|
22.1
|
17.53
|
Small (2)
|
3/16″
|
56.9
|
28.96
|
12.7
|
24.64
|
22.1
|
17.53
|
Medium (1)
|
1/4″
|
68.07
|
36.83
|
12.7
|
26.67
|
25.4
|
17.53
|
Medium (2)
|
5/16"
|
69.34
|
36.83
|
12.7
|
26.67
|
25.4
|
17.53
|
Medium (3)
|
3/8″
|
70.61
|
36.83
|
12.7
|
26.67
|
25.4
|
17.53
|
Large (1)
|
1/2″
|
85.85
|
47.5
|
12.7
|
32.26
|
34.8
|
25.4
|
Large (2)
|
5/8"
|
88.39
|
47.5
|
12.7
|
32.26
|
34.8
|
25.4
|
Large (3)
|
3/4″
|
90.93
|
47.5
|
12.7
|
32.26
|
34.8
|
25.4
|
Weight (g) Series Small, Medium, Large
Series
|
Connection
|
with Valves
|
without Valves
| ||||
|---|---|---|---|---|---|---|---|
PP
|
PVDF
|
GFBN
|
PP
|
PVDF
|
GFBN
| ||
Small (1)
|
1/8″
|
6
|
8
|
7
|
4
|
7
|
6
|
Small (2)
|
3/16″
|
6
|
8
|
7
|
4
|
7
|
6
|
Medium (1)
|
1/4″
|
9
|
13
|
12
|
6
|
12
|
11
|
Medium (2)
|
5/16″
|
9
|
13
|
12
|
6
|
12
|
11
|
Medium (3)
|
3/8″
|
10
|
14
|
13
|
6
|
12
|
11
|
Large (1)
|
1/2″
|
20
|
24
|
22
|
14
|
20
|
16
|
Large (2)
|
5/8″
|
20
|
24
|
22
|
14
|
20
|
16
|
Large (3)
|
3/4″
|
21
|
25
|
23
|
15
|
21
|
14
|
