Sanitary Flange Sliding Latch Quick Couplings - Technical Data
Description
Series: Small, Medium & Large
Flange Connection:

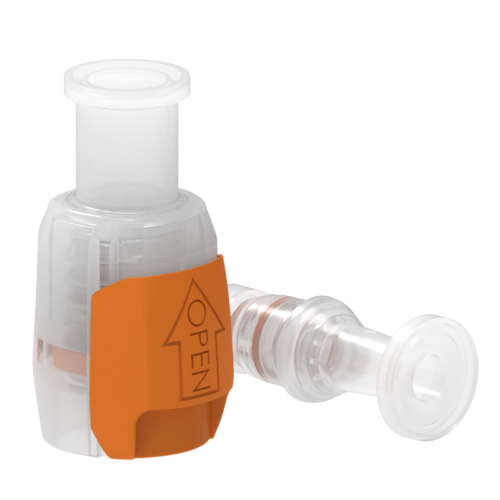

- 3/4"

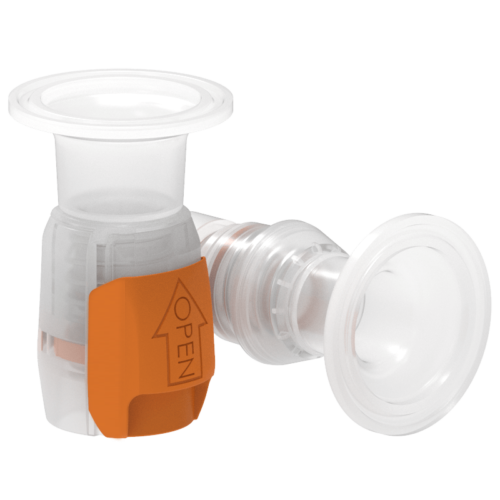

- 1 1/2"

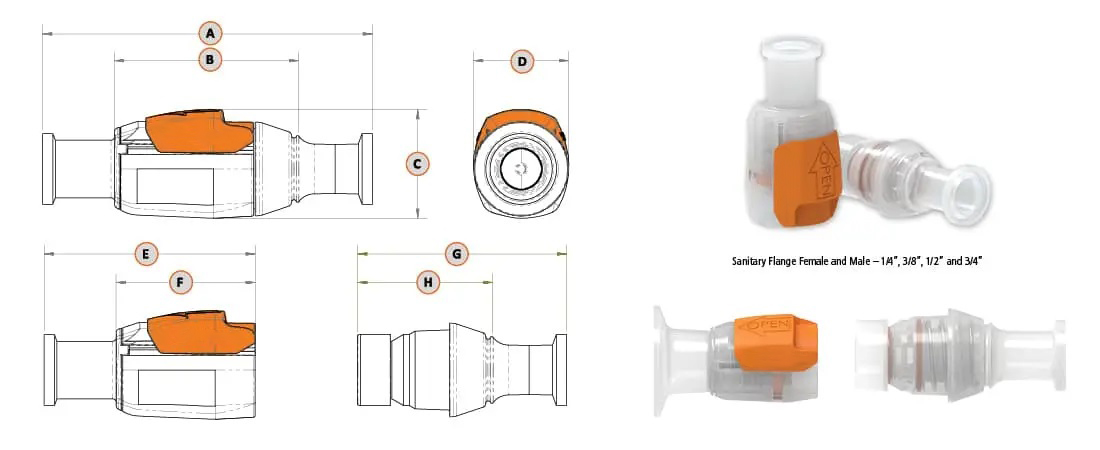

Dimensions (mm)
Series
|
Flange connection
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
|---|---|---|---|---|---|---|---|---|---|
Small (1)
|
3/4"
|
53.59
|
33.78
| ||||||
Small (2)
|
3/4"
|
53.59
|
33.78
| ||||||
Medium (1)
|
3/4"
|
99.06
|
48.77
|
28.45
|
25.15
|
65.28
|
39.88
|
60.2
|
36.32
|
Medium (2)
|
3/4"
|
99.06
|
48.77
|
28.45
|
25.15
|
65.28
|
39.88
|
60.2
|
36.32
|
Medium (3)
|
3/4"
|
99.06
|
48.77
|
28.45
|
25.15
|
65.28
|
39.88
|
60.2
|
36.32
|
Large (1)
|
3/4"
|
116.33
|
65.02
|
38.1
|
33.53
|
74.42
|
49.02
|
73.66
|
47.75
|
Large (2)
|
3/4"
|
116.33
|
65.02
|
38.1
|
33.53
|
74.42
|
49.02
|
73.66
|
47.75
|
Large (3)
|
3/4"
|
116.33
|
65.02
|
38.1
|
33.53
|
74.42
|
49.02
|
73.66
|
47.75
|
Large (1)
|
1 1/2"
|
116.33
|
65.02
|
38.1
|
33.53
|
74.42
|
49.02
|
73.66
|
47.75
|
Large (2)
|
1 1/2"
|
116.33
|
65.02
|
38.1
|
33.53
|
74.42
|
49.02
|
73.66
|
47.75
|
Large (3)
|
1 1/2"
|
116.33
|
65.02
|
38.1
|
33.53
|
74.42
|
49.02
|
73.66
|
47.75
|
Weight versions with valves (g)
Series
|
Flange connection
|
Female
|
Male
| ||||
|---|---|---|---|---|---|---|---|
PP
|
PVDF
|
GFBN
|
PP
|
PVDF
|
GFBN
| ||
Small (1)
|
3/4"
|
6
|
8
|
7
| |||
Small (2)
|
3/4"
|
6
|
8
|
7
| |||
Medium (1)
|
3/4"
|
11
|
18
|
17
|
9
|
13
|
12
|
Medium (2)
|
3/4"
|
11
|
18
|
17
|
9
|
13
|
12
|
Medium (3)
|
3/4"
|
11
|
19
|
17
|
10
|
14
|
13
|
Large (1)
|
3/4"
|
25
|
42
|
38
|
20
|
24
|
22
|
Large (2)
|
3/4"
|
25
|
42
|
38
|
20
|
24
|
22
|
Large (3)
|
3/4"
|
27
|
45
|
38
|
20
|
24
|
22
|
Large (1)
|
1 1/2"
|
31
|
53
|
48
|
26
|
32
|
29
|
Large (2)
|
1 1/2"
|
31
|
53
|
48
|
26
|
32
|
29
|
Large (3)
|
1 1/2"
|
31
|
53
|
48
|
26
|
32
|
29
|
Weight versions without valves (g)
Series
|
Flange connection
|
Female
|
Male
| ||||
|---|---|---|---|---|---|---|---|
PP
|
PVDF
|
GFBN
|
PP
|
PVDF
|
GFBN
| ||
Small (1)
|
3/4"
|
4
|
7
|
6
| |||
Small (2)
|
3/4"
|
4
|
7
|
6
| |||
Medium (1)
|
3/4"
|
10
|
17
|
15
|
6
|
12
|
11
|
Medium (2)
|
3/4"
|
10
|
17
|
15
|
6
|
12
|
11
|
Medium (3)
|
3/4"
|
10
|
18
|
16
|
6
|
12
|
11
|
Large (1)
|
3/4"
|
22
|
39
|
34
|
14
|
20
|
16
|
Large (2)
|
3/4"
|
22
|
39
|
34
|
14
|
20
|
16
|
Large (3)
|
3/4"
|
24
|
39
|
34
|
14
|
20
|
16
|
Large (1)
|
1 1/2"
|
28
|
50
|
44
|
20
|
29
|
23
|
Large (2)
|
1 1/2"
|
28
|
50
|
44
|
20
|
29
|
23
|
Large (3)
|
1 1/2"
|
28
|
50
|
44
|
20
|
29
|
23
|
